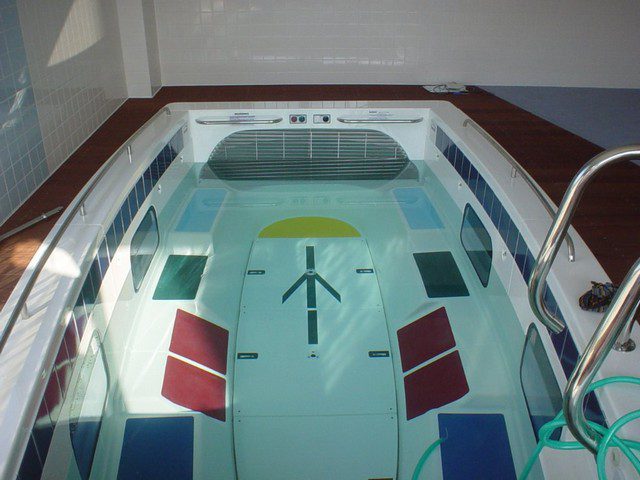

600 T
The SwimEx 600 T coaching pool for elite athletes is the most powerful aquatic machine on the market. With adjustable depths of 48″ and 60″ (122cm and 152cm), it features 99 water speeds, independent performance zones for targeted exercises, angled plyo pads, open/closed chain kinetic exercise benches, and an angled platform for running against the current. Six tethering ports allow physical therapists the ability to lock in a patient during non-weight-bearing protocols. The floor inserts provide the option to gradually increase weight-bearing activities, creating the ideal aquatic therapy environment for progressive strength training and rehabilitation programs.

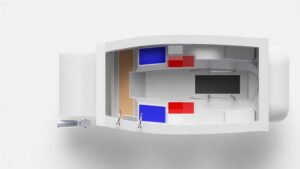

For even more versatility, add an integrated underwater treadmill *.

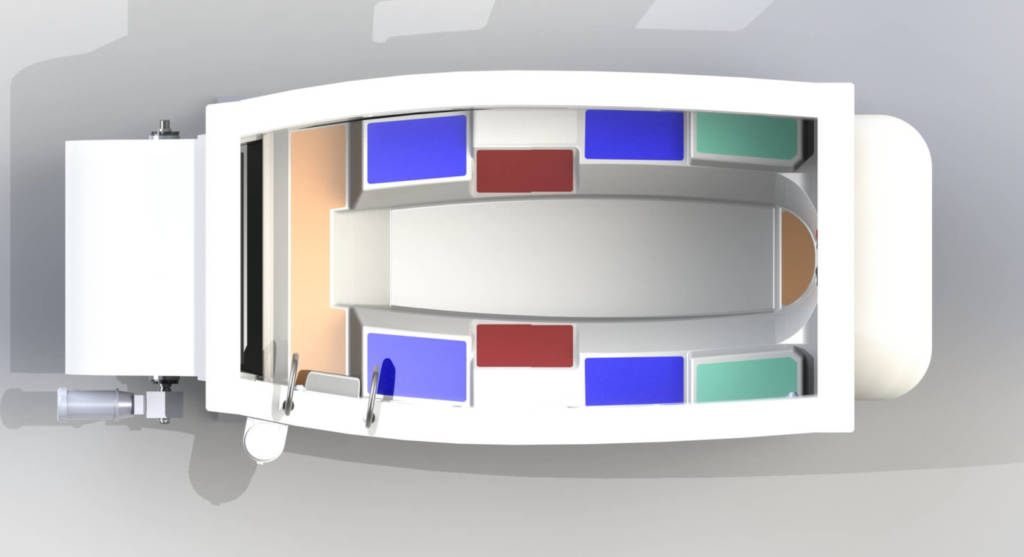

600 T with 8 performance zones
600 TDW
The 600 TDW coaching pool has the same features and extreme power of the 600T with the additional advantage of a deep-water running well that adds either 12″ (30.5cm) or 24″ (61cm) to the pool′s depth. The deep-water well is designed for total non-weight bearing rehabilitation and conditioning applications for more aggressive therapy. This aquatic machine features the same independent performance zones as the 600 T, six tethering ports to lock in a patient’s position during non-weight-bearing protocols, and an angled running platform.
For additional versatility, a 4′ (122cm) extension can be added to accommodate an integrated underwater treadmill *.

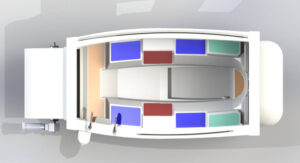

600 TDW – with deep well

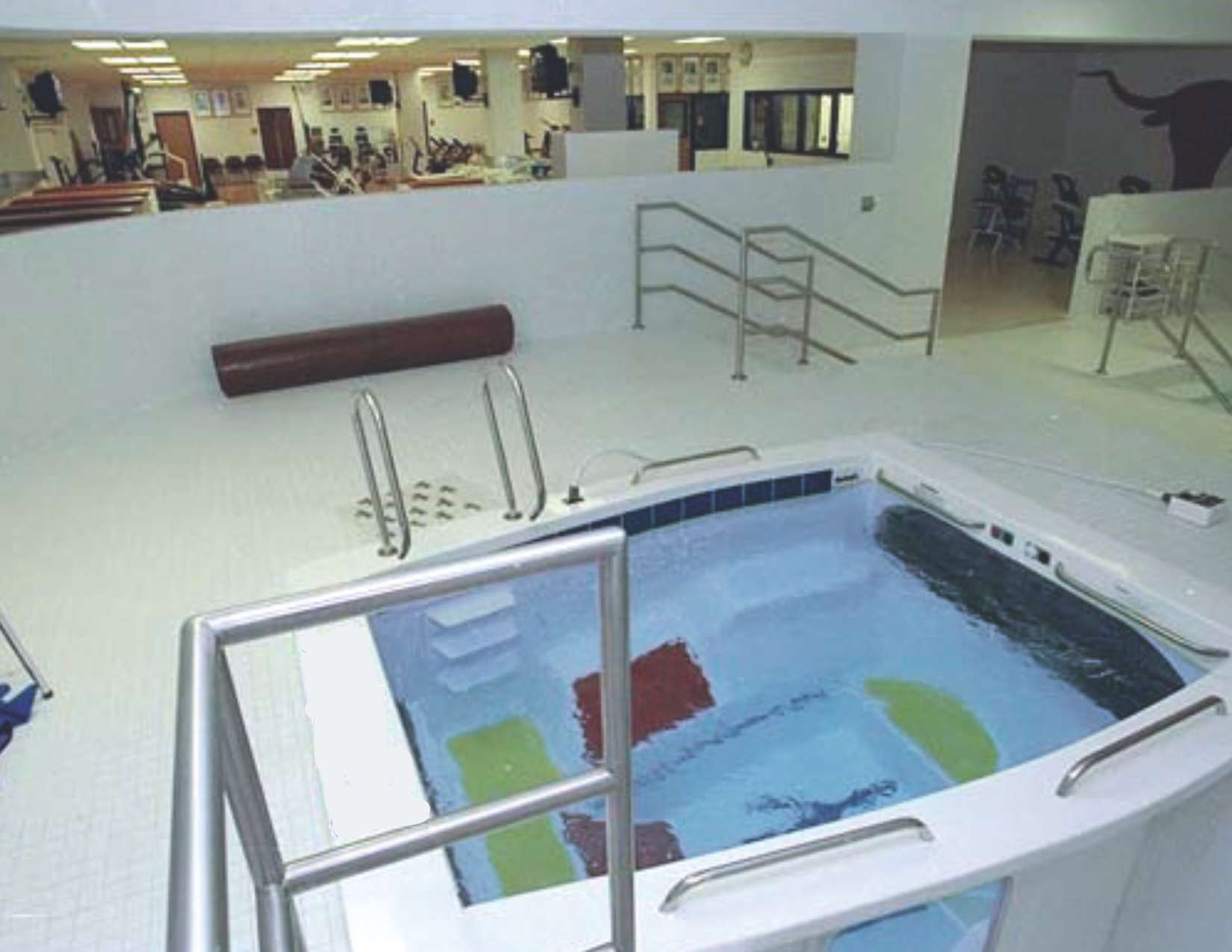

60 T
Good things do come in small packages. The SwimEx 60 T coaching pool is a complete isokinetic hydrotherapy system for physical therapy facilities with limited space for a pool. Physical therapy professionals will achieve all the beneficial outcomes a larger pool provides in this small, compact aquatic machine. It features six performance zones that provide limitless rehabilitation and recovery options.
The 60 T is handcrafted in three or six pieces for easy on-site installation or can be pre-assembled at the SwimEx factory.
* For treadmills, see our exercise equipment page.
Videos
600 T and 600 TDW
- 4-piece fiberglass pool construction comes disassembled for ease of installation into tight spaces
- Recessed steps with stainless steel rails
- Commercial filtration system
- Stainless steel front and side handrails
- Rear emergency shut-off bar
- 6 built-in tethering ports
- 7.5hp electric motor
- Thermal blanket (cover)
- EDGE touchscreen monitor accurately programs water speed to measure performance
- 4 underwater observation windows
- Protocol book and aquatic therapy flash drive
- Waterline tiles
- Water vacuum
- 40-degree angled pad for stationary running
- Colored performance zones built in around perimeter of pool
- 12″ (30.5cm) floor inserts at 48″ (122cm) depth, with removable pole
- Start-up water treatment kit and test kit
- Annual maintenance kit
- On-site personal educational in-service
600 TDW
- 12″ (30.5cm) deep well with floor insert
60 T
- Compact version of the 600 T for limited-space facilities
- 3 or 6-piece design
- 5hp electric motor
Find out more about pool features and options.
600 T
- Pool size: 17’-7” x 7’-8” x 5’-10 ½” (5.36m x 2.34m x 1.79m)
- Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
- Pit size: 20′ x 12′ x 5′8″ (6.1m x 3.66m x1.72m)
- Pool weight with equipment: 3500 lbs (1587kg)
- Pool volume: 3200 gal (12,112 liters)
- Pool filled weight: 31,000 lbs (14,061kg)
- Load bearing: 460 lbs sq ft (2245 kg/m2)
600 TDW
- Pool size: 17’-7” x 7’-8” x 6′10″ (5.36m x 2.34m x 2.08m)
- Water dimensions: 11′9″ x 6′3″ (3.58m x 1.90m)
- Pit size: 20′ x 12′ x 5′8″ and 6′8″ (6.1m x 3.66m x 1.73m and 2.03m)
- Pool weight with equipment: 3500 lbs (1587kg)
- Pool volume: 3300 gal (12,490 liters)
- Pool filled weight: 31,850 lbs (14,447kg)
- Load bearing: 460 lbs sq ft (2245 kg/m2)
60 T
- Pool size: 13’7″ x 7′7″ x 5′10″ (4.14m x 2.31m x 1.78m)
- Water dimensions: 7′9″ x 6′3″ (2.36m x 1.90m)
- Pit size: 15′ x 12′ x 5′8″ (4.57m x 3.66m x 1.72m)
- Pool weight with equipment: 2250 lbs (1020 kg)
- Pool volume: 2300 gal (8706 l)
- Pool filled weight: 21,480 lbs (9743 kg)
- Load bearing: 525 lbs sq ft (2563 kg/m2)
For European installations: For medical and sports-medical use, installations can be according to the German DIN19643 / KOK standard.
Please work with a SwimEx representative for exact details and measurements.
600 T
- 2′ (61 cm) extension increasing pool length (up to 3)
- Assembly of pool at factory
- 8-piece multi-section design for access into tight areas
- Natural gas or propane heater vs standard electric heater (requires a 5″ (12.7 cm) vertical vent)
- Ozonator or UV water treatment
- 2 underwater lights
- Custom colors or logo tiles
- Hydrotherapy jet system with up to 6 jets (includes 1hp pump and controller)
- Deep tissue massage wand with independent pump
- Underwater HD video camera system with DVR and monitor
- Exterior video camera system with monitor
- Removable stainless steel stabilization bar
- Integrated motorized treadmill *
- Drop-in aquatic treadmill *
- Disability lifts
600TDW
- All options of the 600 T plus:
- 24″ deep water well
- Team logo on deep well cover
60T
- All options of the 600T plus:
- 6-piece multi-sectional design for access into tight areas
- 7.5hp electric motor for faster water speeds
* For treadmills, see our exercise equipment page.
Find out more about pool features and options.
