Hydrotherapy Pool - Training Pool - 800 T Series

800 T and 800 TWS models

800 Series hydrotherapy pool key features

Paddlewheel water current
Four-piece construction
Open work space
67½″ (171.5cm) water depth – deepest flat floor
Additional/customizable floor depths
Flat floor or performance zone layouts
Optional integrated treadmill

With an overall depth of 67½″ (171.5cm), our 800 T Series hydrotherapy pool comes standard as one depth, but the pool design allows you to add custom floor depths to create an efficiently versatile and powerful aquatic therapy pool.

The 800 T can have a second water depth of between 42″ and 60″ (107cmm and 153cm). Therapy patients benefit from having two different water depths for varying weight bearing protocols.

The 800 TWS model features a shallower water depth area between 42″ and 60″ (107cm and 153cm), an even shallower area created by a removable floor insert, along with the deep-water exercise area and six colored performance zones.

An underwater treadmill can be integrated into the pool for even more versatility.

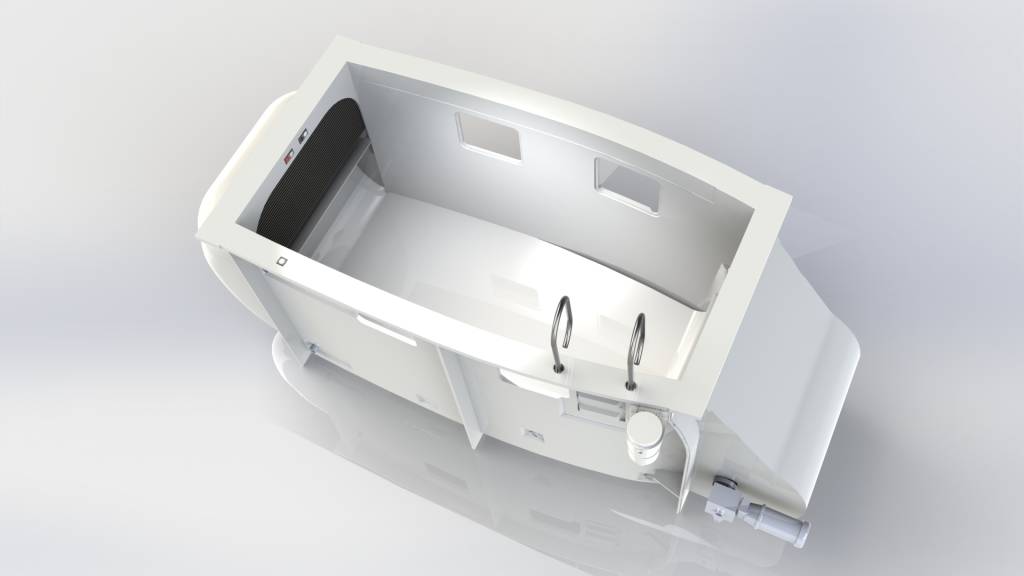

800 T and 800 TWS

Four-piece construction
Commercial filtration system
Equalization skimmer
Recessed steps with stainless steel handrails
Stainless steel front and side handrails
Rear emergency shut-off bar
7.5hp electric motor
Thermal blanket
EDGE touchscreen monitor (programs water speed to accurately measure performance)
4 underwater observation windows
Waterline tiles
Water vacuum
Start-up water treatment kit and test kit
Annual maintenance kit
On-site personal educational in-service
Protocol book and aquatic therapy flash drive

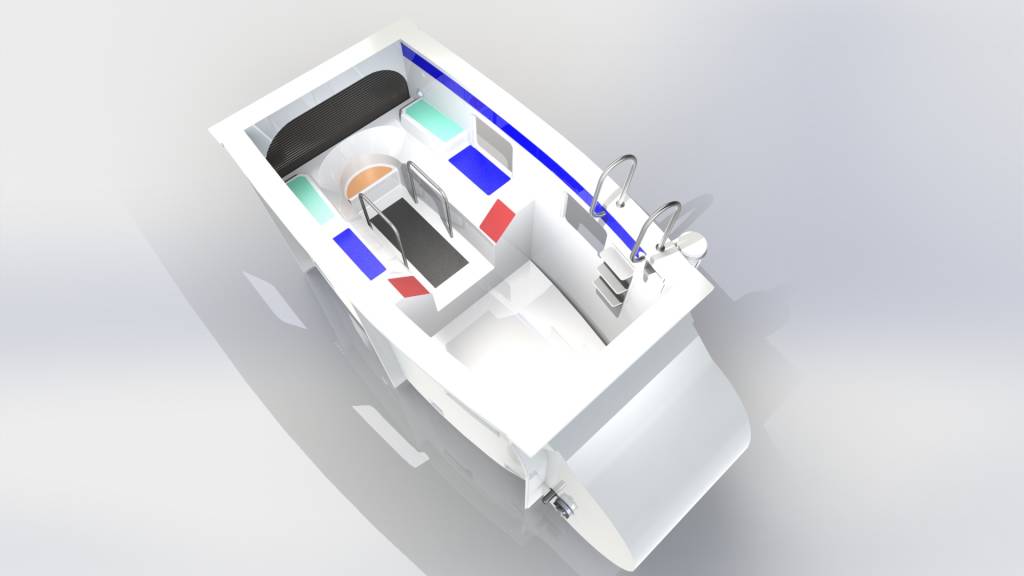

800 TWS

6 colored performance zones
Multiple floor heights: deep section at 67½″ (171.5cm) and workstations at a depth of 42″ to 60″ (107cm to 153cm)

For more information, visit our features and options page.

Pool size: 18’-3 ¼” x 7’-8” x 7’-10 ¼” (5.57m x 2.34m x 2.40m)
Water depth: 67½″ (1.72m)
Optional additional depth: 42″–60″ (1.07m–1.5m)
Water dimensions: 11′8¼″ x 6′3″ x (3.57m x 1.9m)
Pit size: 20′ x 12′ x 7′8¼″ (6.1m x 3.67m x2.34m)
Pool weight empty with equipment (800T): 3,994 lbs (1,812kg)
Pool weight empty with equipment (800TWS): 4,194 lbs (1,902kg)
Pool filled weight (800T): 44,886 lbs (20,360kg)
Pool filled weight (800TWS): 45,086 lbs (20,450kg)
Pool volume: 4,900 gal (18,549 liters)
Weight with water (800T): 44,886 lbs (20,360kg)
Weight with water (800TWS): 45,086 lb (20,450kg)
Load bearing: 789 lbs sq ft (3,852 kg/m2)

For European installations: For medical and sports-medical use, installations can be according to the German DIN19643 / KOK standard.

Please work with a SwimEx representative for exact details and measurements.

1m extension increasing pool length
Assembly of pool at factory (additional assembly charge applies for the 100cm extension)
Natural gas or propane heater vs standard electric heater
Ozonator or UV water treatment
Underwater lights
Custom colors or logo tiles
Hydrotherapy jet system
Underwater HD video camera system with DVD and monitor
Exterior video camera system with monitor
Deep tissue massage wand with independent pump
Removable stabilization bar
800 T: Additional floor depth: 42” to 60” (107cm to 172cm)
Integrated motorized treadmill * (800 T requires additional floor depth)
Drop-in aquatic treadmill *
ADA lifts

* For treadmills, see our exercise equipment page.

For more information, visit our features and options page.
